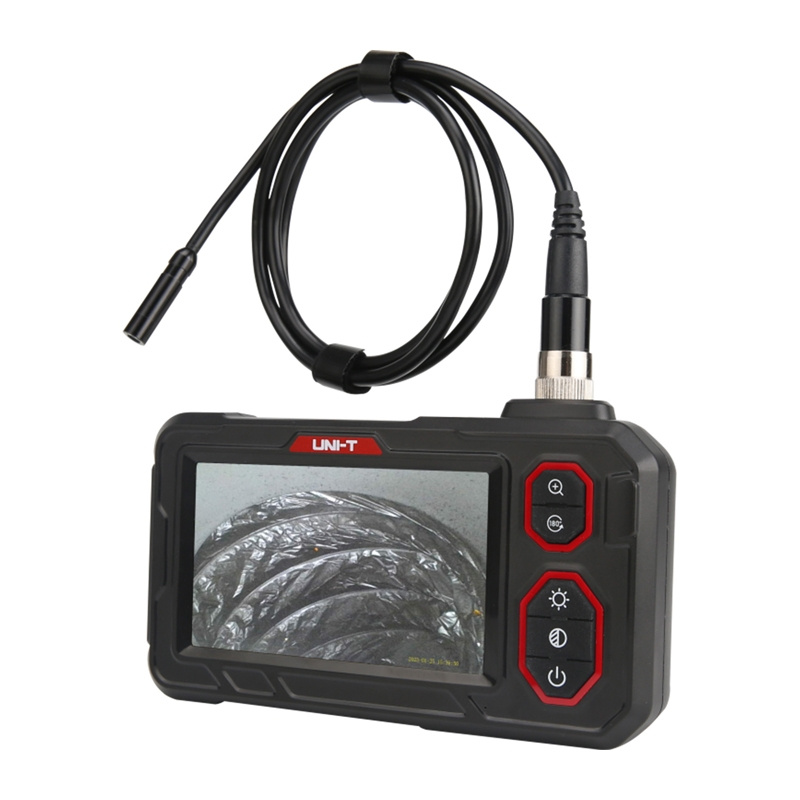

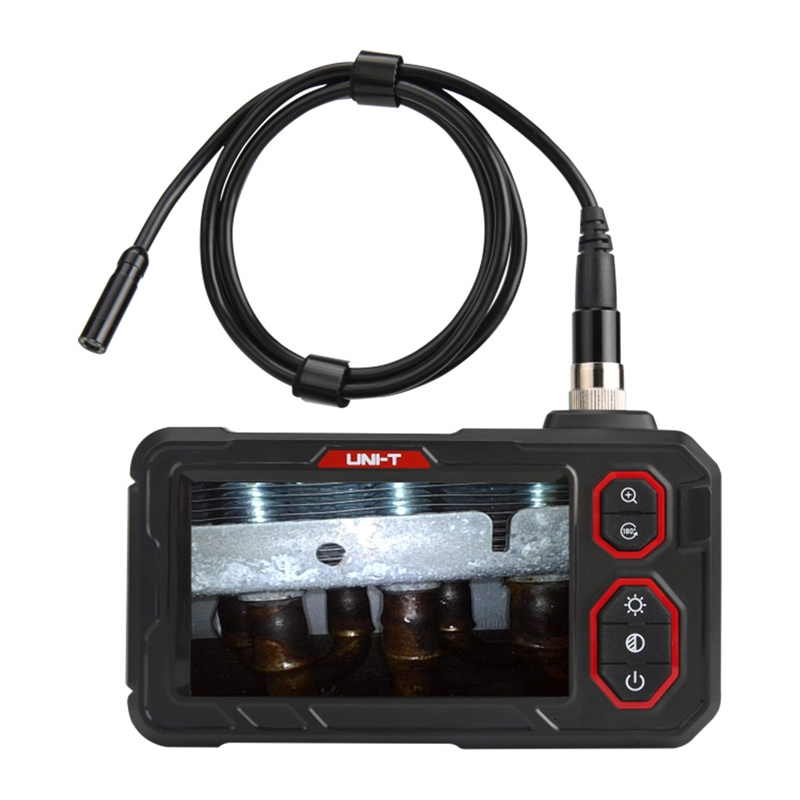

Uni-T UT667 borescope
The Uni-T UT667 borescope, featuring a 1-meter cable, is a device designed for inspecting hard-to-reach areas without the need to disassemble components. It is ideal for industrial, automotive, and installation service applications where a quick view of the interior of machines or pipes is essential. Equipped with a 4.3" screen, it provides a clear image, and features such as image rotation and zoom facilitate the analysis of details during operation.
Image Quality and Ease of Use
The 8 mm diameter camera with LED lighting allows for work in dimly lit spaces, and brightness adjustment lets you tailor visibility to the conditions. The 1 m cable provides a good balance between reach and control over the camera, which works well for standard inspections. The IP67 waterproof probe and rugged construction increase the device’s durability during daily use.
Included
- UT667 borescope
- USB-C cable
- Hook, side mirror, magnet
- Mounting clamps
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT667 |
| Product type | Industrial borescope |
| Display type | 4.3" IPS LCD display |
| Display resolution | 1280 × 720 px |
| System language | English |
| Functions | Screen rotation, black-and-white images, color conversion, zoom in, zoom out |
| Cable type | Replaceable cable with aviation connector |
| Cable length | 1 m |
| Lens diameter | 8 mm |
| Image sensor | CMOS |
| Field of view | 70° |
| Focus range (Depth of field) | 20…100 mm |
| LED brightness adjustment | 4 levels |
| Number of LEDs | 8 |
| Camera resolution | 300K px |
| Probe protection rating | IP67 |
| Power supply | 3.7 V / 2000 mAh rechargeable battery |
| Operating time | 5 h |
| Camera head temperature range | 0…80°C |
| Ambient operating temperature range | 0…45°C |
| Ambient operating humidity range | <90% RH (non-condensing) |
| Certifications | CE, RoHS |
