Uni-T UT667-5m Borescope

160,82 €

Add to wishlist

Kategooria: Measuring tools

Uni-T UT667-5m borescope

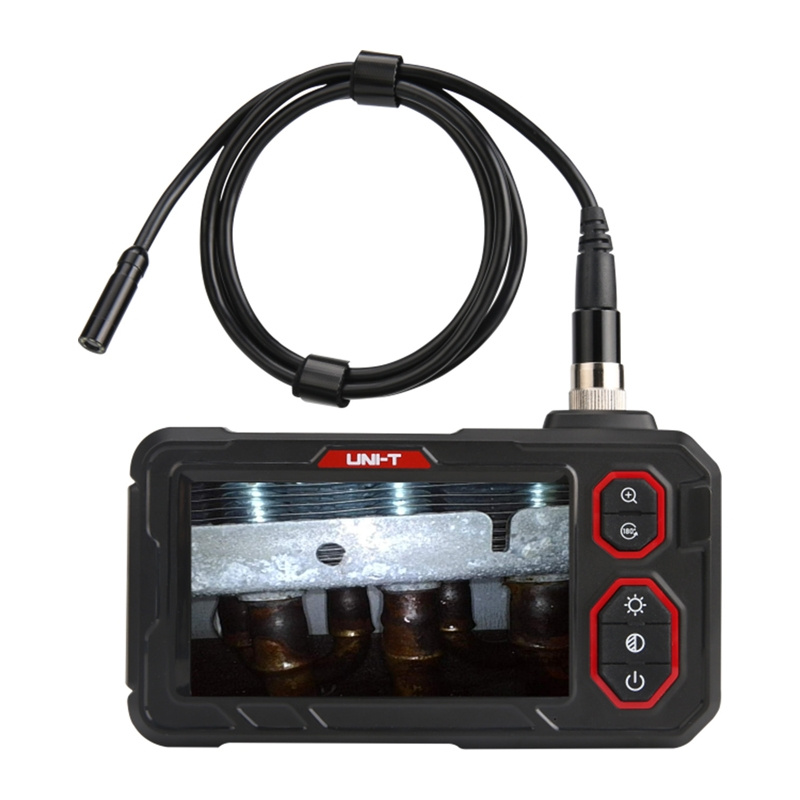

The Uni-T UT667 borescope with a 5-meter cable is designed for inspecting hard-to-reach areas without the need to disassemble components. It is ideal for industrial, automotive, and installation service applications where a quick view of the interior of machines or pipes is essential. Equipped with a 4.3" screen, it provides a clear image, and features such as image rotation and zoom facilitate the analysis of details during operation.

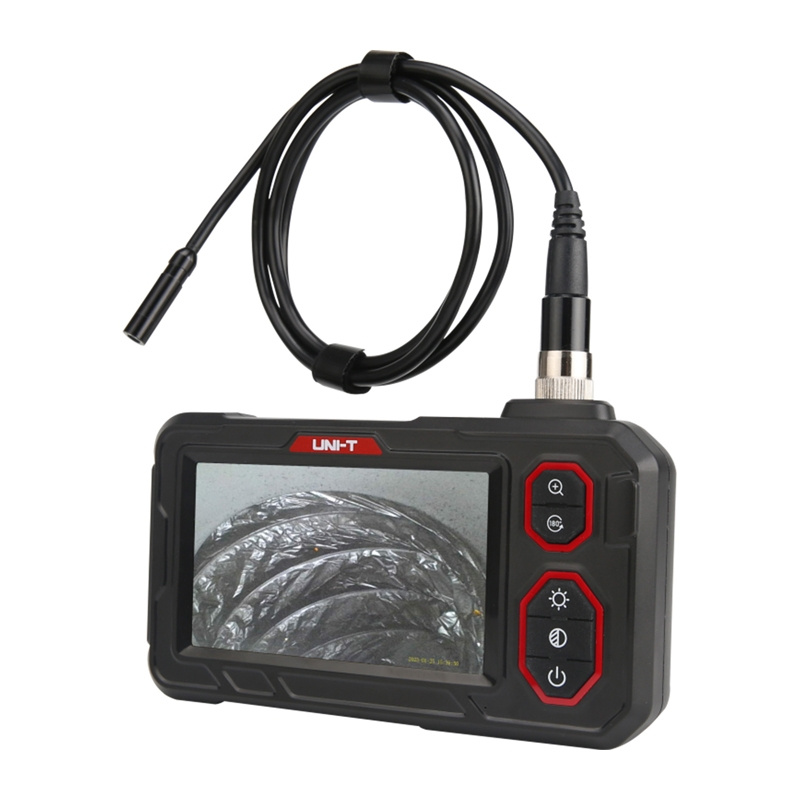

Video borescope with a flexible probe that displays the interior of a conduit or pipe during technical inspection.

Image Quality and Ease of Use

The 8 mm diameter camera with LED lighting allows for operation in dimly lit spaces, and brightness adjustment lets you tailor visibility to the conditions. The 5 m cable provides a good balance between reach and control over the camera, which works well for standard inspections. The IP67 waterproof probe and rugged construction increase the device’s durability during daily use.

Portable video borescope used to inspect car engine components with a live image preview on the screen.

Included

UT667-5m borescope
USB-C cable
Hook, side mirror, magnet
Mounting clamps
User manual

Specifications

Manufacturer	Uni-T
Model	UT667-5m
Product type	Industrial borescope
Display type	4.3" IPS LCD display
Display resolution	1280 × 720 px
System language	English
Functions	Screen rotation, black-and-white images, color conversion, zoom in, zoom out
Cable type	Replaceable cable with aviation connector
Cable length	5 m
Lens diameter	8 mm
Image sensor	CMOS
Field of view	70°
Focus range (Depth of field)	20…100 mm
LED brightness adjustment	4 levels
Number of LEDs	8
Camera resolution	300K px
Probe protection rating	IP67
Power supply	3.7 V / 2000 mAh rechargeable battery
Operating time	5 h
Camera head temperature range	0…80°C
Ambient operating temperature range	0…45°C
Ambient operating humidity range	<90% RH (non-condensing)
Certifications	CE, RoHS
