Uni-T UT161D digital multimeter

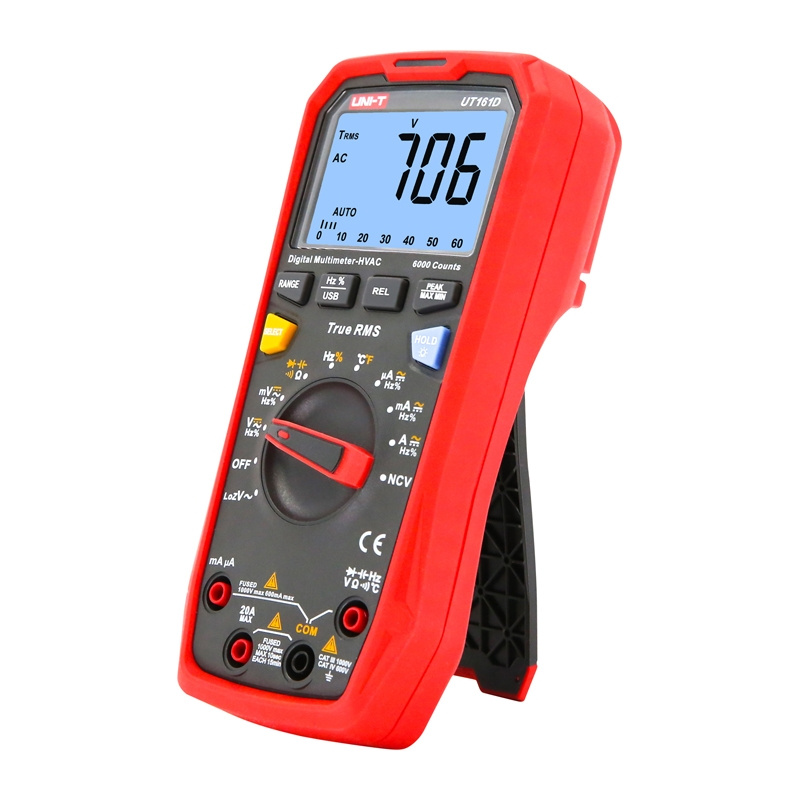

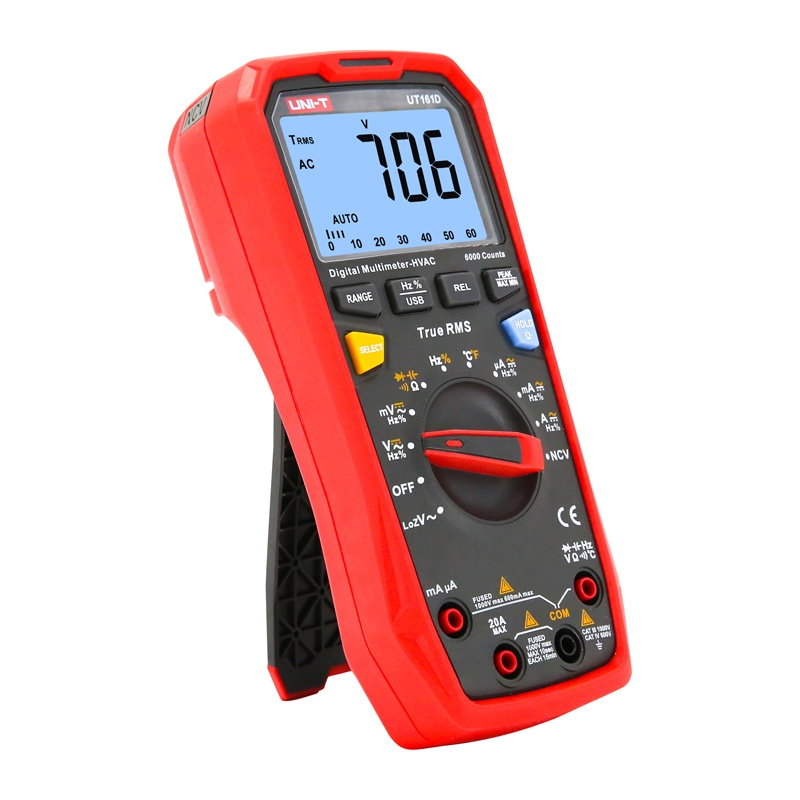

The Uni-T UT161D is a digital multimeter with True RMS functionality, designed for measurements in electrical installations and the diagnostics of electronic devices. The device measures AC/DC voltage up to 1000 V, current up to 10 A, and temperature, making it suitable for both everyday workshop tasks and more demanding service applications. True RMS, Max/Min, Peak Hold, and relative mode functions increase the accuracy of result analysis and facilitate monitoring of device operating parameters.
Clear readout and greater measurement safety
The UT161D model is equipped with non-contact voltage detection (NCV) and a LoZ function, which helps minimize the impact of stray voltages during electrical installation measurements. The backlit display with an analog bar allows for quick and convenient data reading, and USB communication enables the transfer and archiving of measurement results. Thanks to the combination of a wide range of functions and convenient operation, the multimeter performs well during daily diagnostics and service work.
Included
- Digital multimeter
- Test leads (1 pair)
- USB cable
- Thermocouple
- 4 AAA batteries
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT161D |
| Product type | True RMS digital multimeter |
| DC voltage range | 1000 V ±(0.5% + 3) |
| AC voltage range | 1000 V ±(1.0% + 3) |
| DC current range | 10 A ±(1.0% + 2) |
| AC current range | 10 A ±(1.2% + 5) |
| Resistance measurement range | 60 MΩ ±(1.0% + 2) |
| Capacitance measurement range | 60 mF ±(3.0% + 5) |
| Frequency range | 10 MHz ±(0.1% + 4) |
| Duty cycle range | 0.1% – 99.9% ±(2.0% + 5) |
| Temperature measurement range | -40…1000°C ±(1.0% + 3) |
| Maximum display reading | 6000 |
| AC bandwidth | 40 Hz – 1 kHz |
| Functions | True RMS, NCV, LoZ, diode test, continuity test, Data Hold, Relative mode, Max/Min, Peak Hold, backlight, bar graph, USB communication |
| Measurement category | CAT III 1000V / CAT IV 600V |
| Power supply | 4 × 1.5 V AAA batteries |
| Dimensions | 190 × 90 × 50 mm |
| Weight | 350 g |
| Certifications | CE, UKCA, cETLus |
