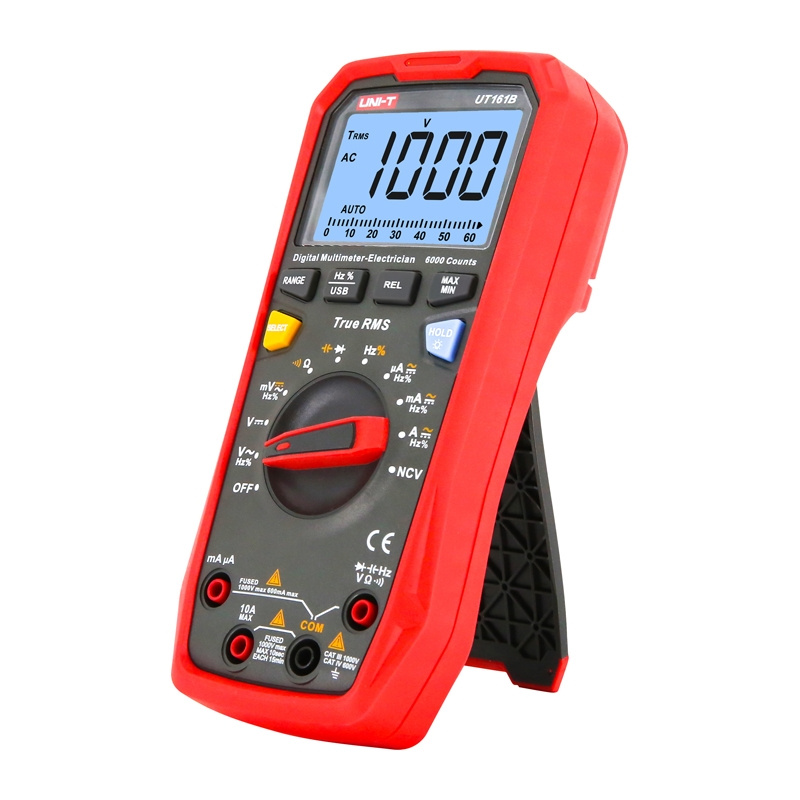

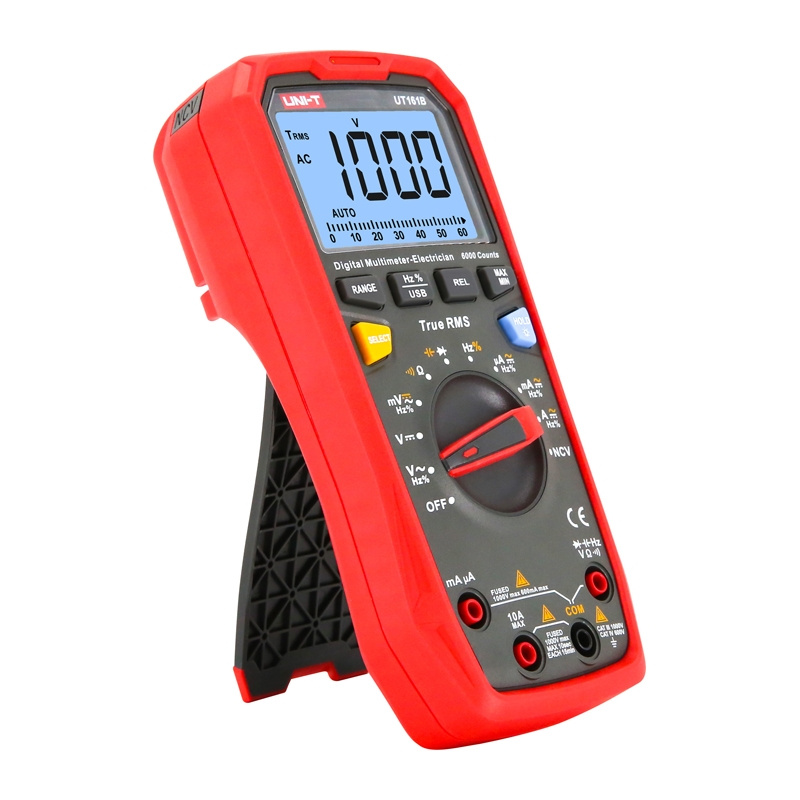

Uni-T UT161B universal digital multimeter
The Uni-T UT151A is a practical digital multimeter designed for basic maintenance work, system inspections, and the diagnosis of electrical and electronic devices. The device measures AC/DC voltage up to 600 V, current up to 10 A, and resistance up to 200 MΩ, making it suitable for both simple home repairs and more demanding workshop tasks. The easy-to-read display with a maximum reading of 2000 facilitates quick reading of results, and the compact housing fits comfortably in the hand.
Features for ease of use and safety
The UT151A model is equipped with manual range selection, a Data Hold function, a continuity test, a diode test, and an hFE transistor test. An additional capacitance measurement jack streamlines work with capacitors, while auto-off and a low-battery indicator enhance the convenience of daily use. Compliance with safety categories CAT II 600V and CAT III 300V allows for safe performance of typical electrical measurements.
Included
- Digital multimeter
- 4 AAA batteries
- Test leads
- USB cable
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT161B |
| Type | True RMS digital multimeter |
| DC voltage | 1000V ±(0.5%+3) |
| AC Voltage | 1000V ±(1.0%+3) |
| DC Current | 10A ±(1.0%+2) |
| AC Current | 10A ±(1.2%+5) |
| Resistance | 60MΩ ±(1.0%+2) |
| Capacitance | 60mF ±(3.0%+5) |
| Frequency | 10 MHz ±(0.1%+4) |
| Duty cycle | 0.1% ~ 99.9% ±(2.0%+5) |
| Maximum reading | 6000 |
| AC bandwidth | 40 Hz ~ 500 Hz |
| Functions | True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, Max/Min, backlight, bar graph, USB communication |
| Power supply | 4x 1.5V AAA batteries |
| Dimensions | 190 × 90 × 50 mm |
| Weight | 350 g |
| Safety | CAT III 1000V / CAT IV 600V |
| Certifications | CE, UKCA, cETLus |
