Uni-T UT336P Wireless Pressure Gauge Kit
The Uni-T UT336P Kit is a complete solution for working with refrigeration systems and heat pumps. It combines a wireless pressure gauge with a temperature probe, enabling simultaneous measurement of pressure and temperature and more accurate system diagnostics.
System Parameter Measurement and Analysis
The UT336P Kit offers a wide pressure measurement range in multiple units and temperature measurement from -50°C to 150°C. Connecting to the mobile app via Bluetooth allows for real-time data monitoring and analysis of parameters such as superheat and subcooling.
Features that make work easier
The device allows you to store up to 8,000 measurements and set a logging interval, which is useful for long-term monitoring. High and low pressure alarms, a backlit screen, and the ability to work offline enhance user convenience.

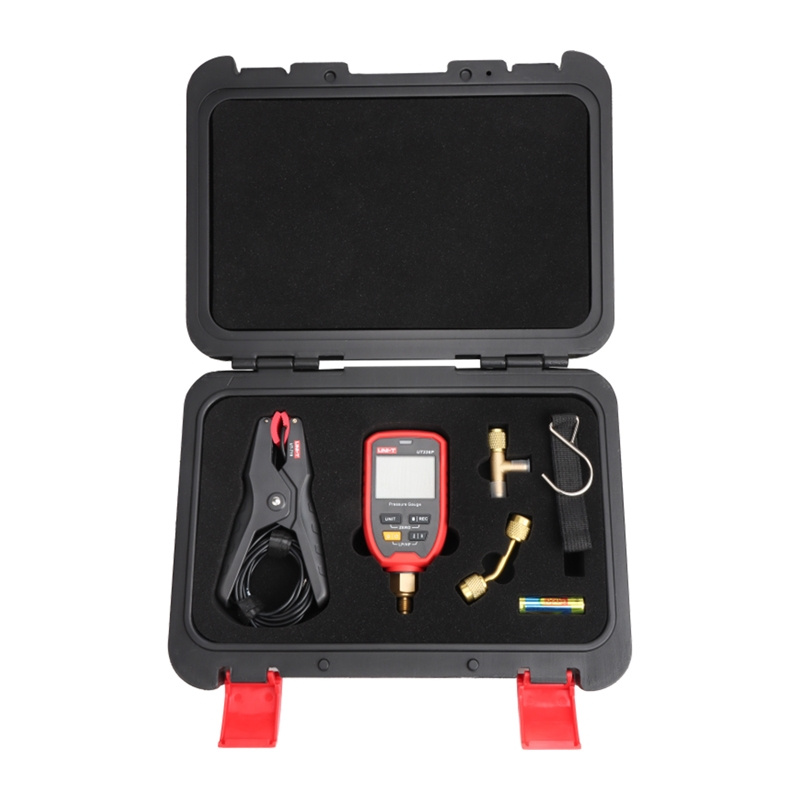

Included in the set
- Wireless pressure gauge
- Temperature probe
- 3 AA batteries
- Wrist strap
- Wrist strap
- Tool kit
- 1/4" SAE tee
- 1/4" SAE elbow
- User manual
- Download guide
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT336P Kit |
| Type | Wireless pressure gauge with temperature probe |
| Pressure range | -1 ~ 60 bar ±0.5% FS |
| Temperature range | -50°C ~ 150°C ±(0.5°C / 1°C) |
| Pressure Units | bar, kg/cm², cmHg, psi, inHg, kPa, MPa |
| Temperature Units | °C / °F |
| Data Log | 8,000 measurements |
| Logging Interval | 1 s ~ 1 h |
| Connectivity | Bluetooth |
| Supported Media | 10 in the device / 90+ in the app |
| Features | Data Hold, data logging, high and low pressure alarms, LCD backlight, pressure zeroing, auto power off |
| Temperature port | 3.5 mm |
| Connection | 1/4" SAE |
| Protection rating | IP54 |
| Power supply | 3x AA batteries |
| Dimensions | 145 x 68 x 39 mm |
| Weight | 250 g |
| Certifications | CE, RoHS |
| Kaal | 3384 kg |
|---|---|
| Mõõtmed | 370 × 9030310090 cm |
