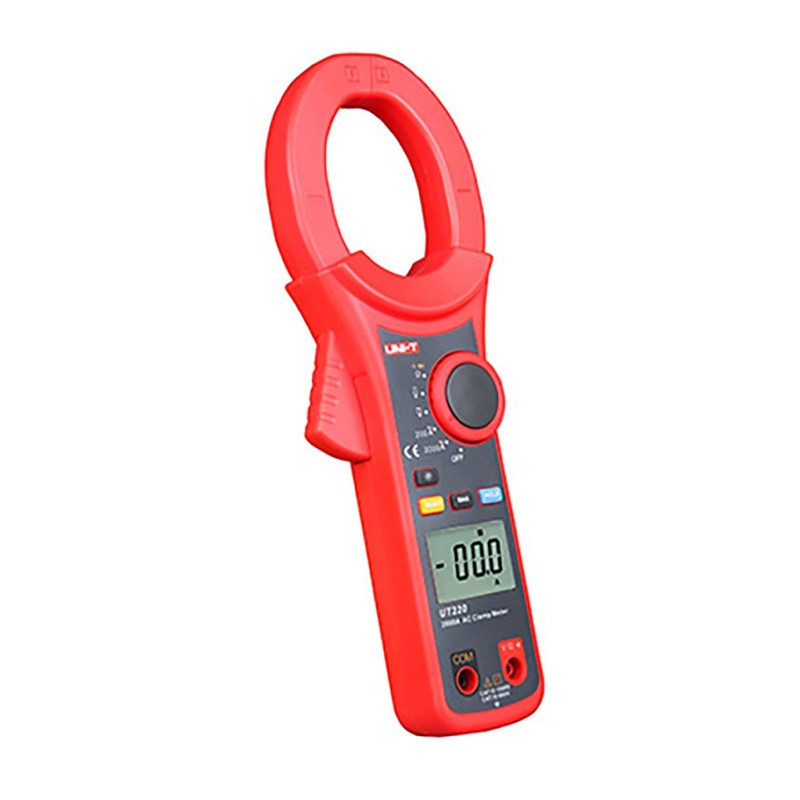

Uni-T UT220 digital clamp meter
The Uni-T UT220 is a digital clamp meter designed to measure high AC currents up to 2000 A. The device is engineered for stable, safe, and reliable operation, making it well-suited for professional applications requiring the measurement of high current values. A 63 mm jaw opening, automatic range switching, and an easy-to-read display enhance the convenience of everyday use.
Basic functions for measuring high currents
The UT220 model allows for the measurement of AC current up to 2000 A, AC voltage up to 750 V, DC voltage up to 1000 V, and resistance up to 20 MΩ. The maximum reading of 2000 makes it easy to read basic results, while the diode test, continuity buzzer, Data Hold, and MAX functions enhance the device’s practicality during daily diagnostics. This model is designed for users who need a simple and reliable meter for working with high AC currents.
Convenient operation and practical design
The meter is equipped with a full set of icons on the display, a low-battery indicator, and appropriate input impedance, which improves comfort and safety during use. The device is powered by a 9V 6F22 battery, weighs 389 g, and measures 298 × 107 × 47 mm, making it comfortable for everyday use.
Included
- Clamp meter
- Test leads (1 pair)
- 9V battery (6F22)
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT220 |
| Product type | Digital clamp meter |
| AC current range | 2000 A ±(2.5% + 5) |
| AC voltage range | 750 V ±(1.2% + 5) |
| DC voltage range | 1000 V ±(0.8% + 1) |
| Resistance measurement range | 20 MΩ ±(1% + 2) |
| Maximum display reading | 2000 |
| Functions | Diode test, continuity test, Data Hold, MAX, auto-range, low battery indicator |
| Jaw opening | 63 mm |
| Power supply | 9V battery (6F22) |
| Display dimensions | 43 × 30 mm |
| Dimensions | 298 × 107 × 47 mm |
| Weight | 389 g |
| Certifications | CE, UKCA, cETLus |
