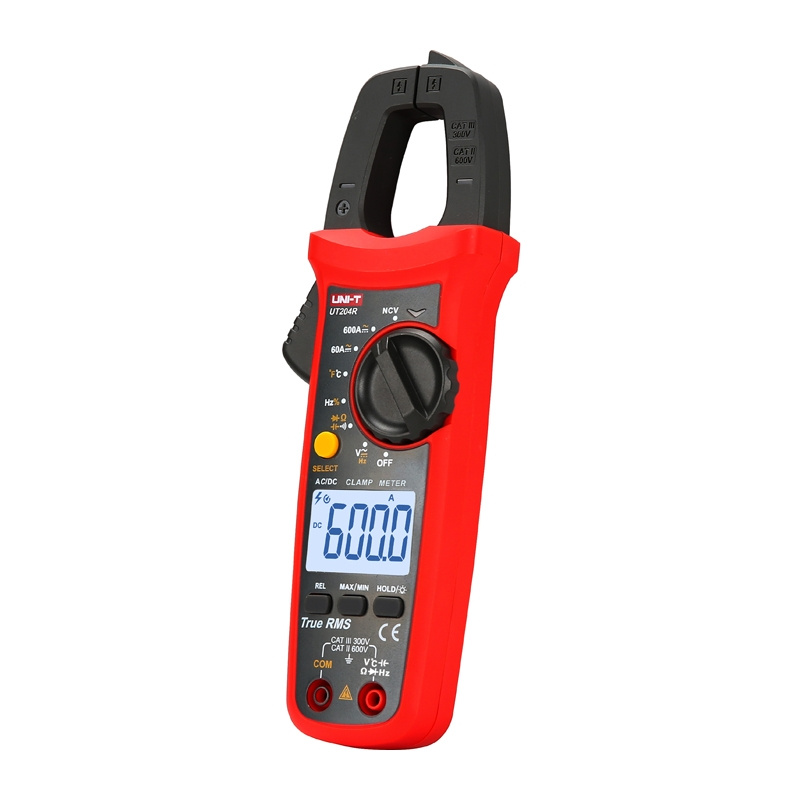

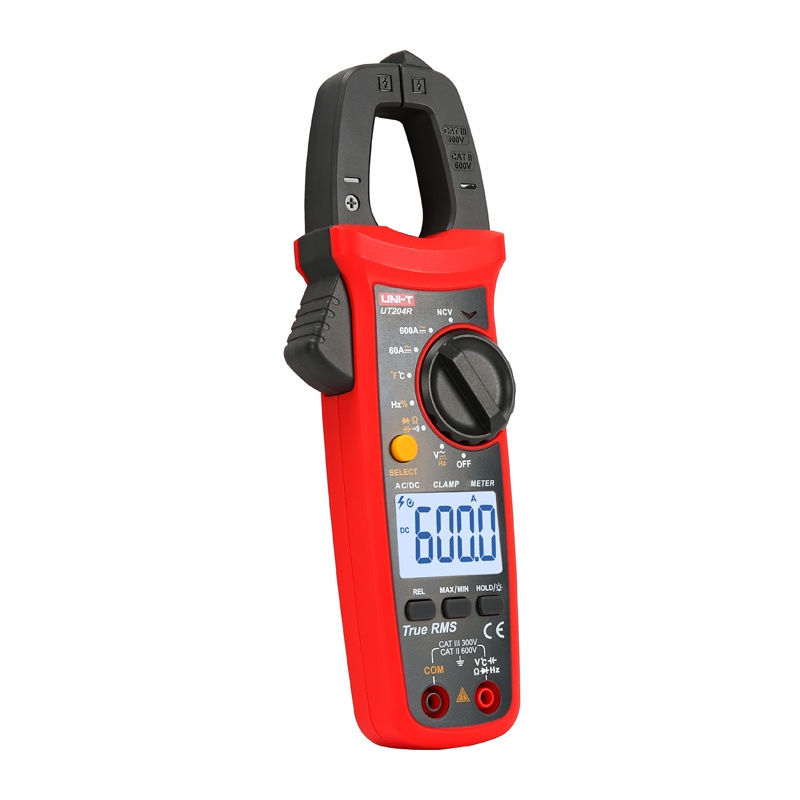

Uni-T UT204R Digital Clamp Meter
The Uni-T UT204R universal clamp meter is a practical tool for everyday electrical measurements. It is ideal for inspecting installations, diagnosing basic circuits, and measuring current without having to open the circuit. Thanks to its clamp design, it allows for quick and convenient measurements in the field.
The most advanced model in the series
The UT204R model allows for the measurement of AC and DC current up to 600 A and AC and DC voltage up to 600 V, making it well-suited for more demanding tasks. In addition, it offers resistance, capacitance, frequency, and temperature measurements.
User-friendly features
The multimeter is equipped with True RMS, NCV, Live Test, Data Hold, and Relative mode. This set of features enhances usability and allows for faster assessment of the system’s condition and the presence of a phase conductor.
Clear design and safe operation
The large backlit screen improves the readability of results, and the higher resolution facilitates a more accurate analysis of parameters. Compliance with safety categories CAT II 600V and CAT III 300V allows for safe use of the device during daily measurements.
Included in the set
- Clamp meter
- Batteries x2
- Test leads
- Thermocouple
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT204R |
| Type | Clamp meter |
| AC current | 0.06~600A ±(2%+5) |
| DC current | 0.06~600A ±(2%+5) |
| AC voltage | 600V ±(0.8%+5) |
| AC voltage frequency | 10Hz~60kHz ±(0.5%+2) |
| DC voltage | 600V ±(0.5%+2) |
| Resistance | 60MΩ ±(0.8%+2) |
| Capacitance | 60mF ±(4%+5) |
| Temperature | -40°C~1000°C ±(1.5%+5) |
| Frequency | 10 Hz–10 MHz ±(0.1%+4) |
| Maximum reading | 6000 |
| Functions | True RMS, NCV, Live test, Data Hold, Relative mode, LCD backlight |
| Jaw opening | 28 mm |
| Power supply | 2x 1.5V batteries (R03) |
| Safety | CAT II 600V / CAT III 300V |
| Dimensions | 215 x 63 x 36 mm |
| Certifications | CE, UKCA, cETLus |
| Kaal | 430 kg |
|---|---|
| Mõõtmed | 235 × 9030310090 cm |
