Uni-T palm-size UT131C digital multimeter
The Uni-T UT131C is a compact digital multimeter from the UT131 series, designed for convenient and basic measurements in everyday use. The series features a clear LCD display, an ergonomic housing with a protective cover, and a practical test lead holder. Drop resistance from heights of up to 2 meters increases the device’s durability and allows for greater confidence in its use.
Additional temperature measurement function
The UT131C model allows for the measurement of DC voltage up to 250 V, AC voltage up to 250 V, DC current up to 10 A, and resistance up to 20 MΩ. A distinguishing feature of this model is its temperature measurement function, which covers a range from -40°C to 1000°C and from -40°F to 1832°F, making it more versatile for a wider range of applications. Manual range selection allows you to more precisely tailor the device’s operation to a specific measurement.
A convenient tool for everyday tasks
The device is equipped with a diode test, continuity test, Data Hold function, auto-off, and an LCD backlight. A maximum reading of 2000 and a loud buzzer improve the comfort of daily use. Thanks to its CAT II 250V safety rating, the UT131C is suitable for basic measurement tasks, and the included thermocouple allows you to measure temperature right away.

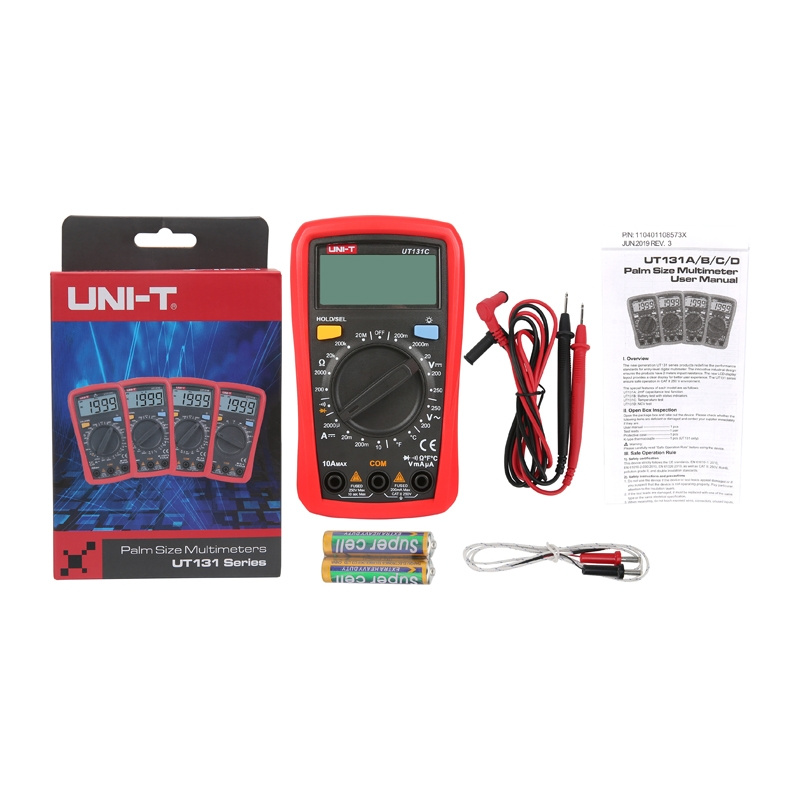

Included
- Digital multimeter
- Test leads
- Thermocouple
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT131C |
| Product type | Pocket digital multimeter |
| DC voltage range | 200 mV / 2000 mV / 20 V / 200 V / 250 V ±(0.5% + 2) |
| AC voltage range | 200 V / 250 V ±(1.2% + 3) |
| DC current range | 200 mA / 10 A ±(1.0% + 2) |
| Resistance measurement range | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 20 MΩ ±(0.8% + 2) |
| Temperature measurement range (°C) | -40…1000°C ±(1.0% + 3) |
| Temperature measurement range (°F) | -40…1832°F ±(1.5% + 5) |
| Maximum display reading | 2000 |
| Range selection | Manual |
| Functions | Diode test, continuity test, Data Hold, auto power off, LCD backlight |
| Measurement category | CAT II 250V |
| Drop resistance | 2 m |
| Power supply | 2 × 1.5 V (R03) |
| Weight | 206 g |
| Dimensions | 134 × 77 × 47 mm |
| Display dimensions | 66 × 51 mm |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
| Kaal | 330 kg |
|---|---|
| Mõõtmed | 206 × 9030310090 cm |
