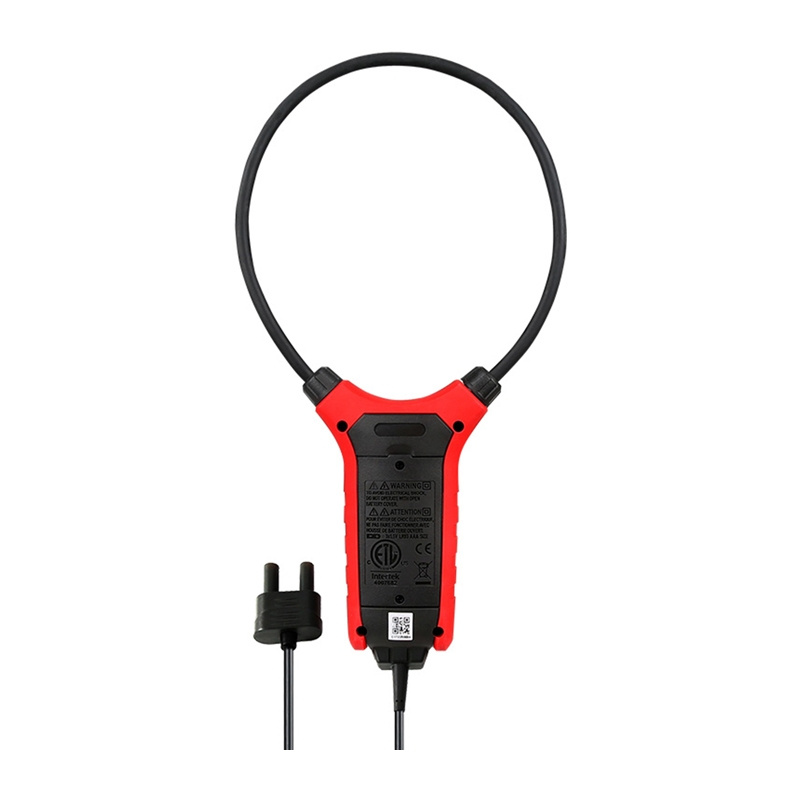

Uni-T Flex Clamp UT-CS09D sensor
The Uni-T Flex Clamp UT-CS09D is a flexible current sensor based on a Rogowski coil, designed for measurements in confined spaces where the use of traditional clamp meters is difficult. Thanks to its flexible design, it can comfortably wrap around wires of various diameters, and its measurement range of up to 3000 A allows it to work with high-current installations. The 45.7 cm flexible measuring cable makes it easy to adapt to various installation configurations, and when connected to compatible Uni-T meters, such as the UT206B or UT208B, results are displayed directly on the device’s screen. Its robust construction, resistance to drops from a height of 1 meter, and CAT IV 600V safety rating make this model well-suited for professional measurements in demanding working conditions.
Included
- Flexible current sensor
- BNC adapter
- 3 AAA batteries
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT-CS09D |
| Product type | Flexible current sensor (Rogowski) |
| AC current range | 30 A / 300 A / 3000 A |
| Frequency response | 45 Hz – 500 Hz |
| Flex loop length | 45.7 cm |
| Measurement category | CAT IV 600V |
| Drop resistance | 1 m |
| Ambient operating temperature range | 0…50°C |
| Ambient storage temperature range | -20…60°C |
| Ambient storage humidity range | ≤80% RH |
| Power supply | 3 × 1.5 V AAA batteries |
| Dimensions | 267 × 119.4 × 34 mm |
| Weight | 260 g |
| Certifications | CE, UKCA, cETLus |
| Kaal | 838 kg |
|---|---|
| Mõõtmed | 260 × 9030900000 cm |
