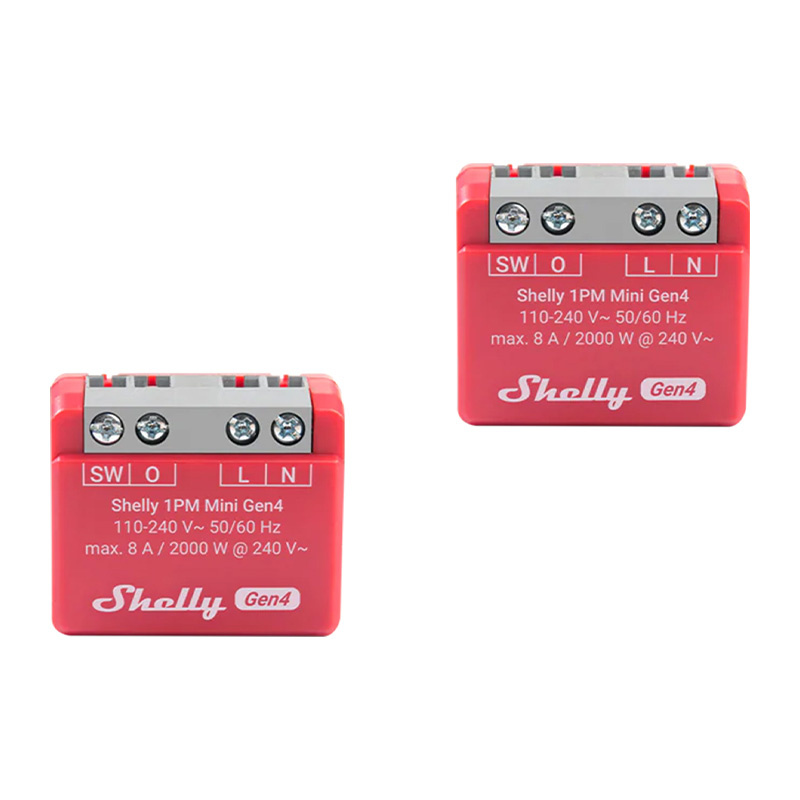

Set of 2 Shelly 1PM Mini Gen4 Zigbee/Matter Controllers

Set of 2 Shelly 1PM Mini Gen4 Zigbee/Matter Controllers - Image 2

Set of 2 Shelly 1PM Mini Gen4 Zigbee/Matter Controllers

70,12 €

Add to wishlist

Kategooria: Smart controllers

Set of 2 Shelly 1PM Mini Gen4 Zigbee/Matter Controllers

The Shelly 1PM Mini Gen4 controller allows for remote control of electrical devices and precise measurement of their energy consumption. It supports Wi-Fi, Zigbee, Bluetooth, and Matter, so it can be easily integrated with various home automation systems. It operates on a local network and via the cloud. The built-in web interface allows for configuration and monitoring without the need for additional software. Thanks to its compact size, it fits into standard electrical boxes and can be mounted behind outlets or switches in tight spaces. The set includes two controllers.

A small, red controller held between two fingers.

Control and monitoring in one

The Shelly 1PM Mini Gen4 functions simultaneously as a relay and an energy meter. This gives you not only the ability to remotely turn devices on and off, but also insight into actual power consumption. The power measurement feature allows for a detailed analysis of connected devices’ operation and helps optimize energy costs. The device sends data to the cloud or stores it locally, depending on the user’s preferences.

Two red Shelly controllers of different sizes side by side on a light background. Circuit diagrams and blue terminals are visible.

Compatibility and integrations with ecosystems

The device supports Zigbee, Wi-Fi, Bluetooth, and Matter protocols. It can be integrated into systems such as Google Home, Amazon Alexa, SmartThings, and KNX. The controller also supports MQTT, HTTPS, Web Hooks, UDP, and local APIs, enabling the creation of advanced scenarios and collaboration with other smart home components.

A red Shelly controller placed next to a one-euro coin for product scale comparison.

Programming, schedules, and reactions

The product allows you to create complex schedules and scenarios with the ability to set up to 20 schedules and webhooks—each with up to 5 URLs. It also supports scripts written in Shelly Script, allowing for the automation of actions based on time, device status, or input data. You can also use so-called virtual components, which increase the flexibility of system configuration.

Three small controllers side by side in blue, red, and white on a blue background.

Stability and operational safety

The Shelly 1PM Mini Gen4 is equipped with a range of safety features, including protection against overheating, power surges, overloads, and power limits. Thanks to the ESP-Shelly-C68F microprocessor and 8 MB of flash memory, the device ensures fast data processing and stable operation. Additionally, it can function as a repeater, amplifying the Zigbee or Wi-Fi signal in hard-to-reach areas.

A small red controller mounted inside a yellow electrical box in a wall along with wires.

Included

Shelly controller x2
user manual

General

Manufacturer	Shelly
Model	1PMMiniGen4

Physical specifications

Dimensions	29 x 34 x 16 ± 0.5 mm / 1.34 × 1.11 × 0.63 ±0.02 inches
Weight	18 ±1 g / 0.63 ±0.04 oz
Maximum tightening torque for screw terminals	0.4 Nm / 3.5 lbf.in
Wire cross-section	0.2 to 2.5 mm² / 24 to 14 AWG (wire, stranded wire, and ferrules)
Wire stripping length	6 to 7 mm / 0.24 to 0.28 inches
Mounting	Wall box
Housing material	Plastic
Housing color	Red
Connector color	Gray

Environmental conditions

Operating temperature	-20°C to 40°C / -5°F to 105°F
Operating humidity	30% to 70% RH
Maximum altitude	2000 m / 6562 ft

Electrical Specifications

Power Supply	110–240 V AC
Relay	NO contact, 1-pole, µ contact
External Protection	Triggering characteristic B or C, max. rated current 10 A, min. breaking capacity 6 kA, energy limitation class 3

Output circuit parameters

Maximum switching voltage	240 V AC
Maximum switching current	8 A / 240 V AC
Power measurement	Yes
Overvoltage protection / cut-off	Yes
Overload protection / cut-off	Yes
Power overload protection / cut-off	Yes

Sensors, meters

Built-in internal temperature sensor	Yes

Wi-Fi

Protocol	802.11 b/g/n
RF band	2412 – 2472 MHz
Maximum RF power	< 20 dBm
Range	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (depending on local conditions)

Bluetooth

Protocol	5.0
RF Band	2402 – 2480 MHz
Maximum RF Power	< 4 dBm
Range	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depending on local conditions)

Zigbee

Protocol	802.15.4
RF bands	2400 – 2483.5 MHz
Maximum RF power	< 20 dBm
Range	Up to 100 m / 328 ft indoors and 300 m / 984 ft outdoors (depending on local conditions)
