IMOU CCTV Kit-Lite Surveillance Kit, WiFi

IMOU CCTV Kit-Lite Surveillance Kit, WiFi

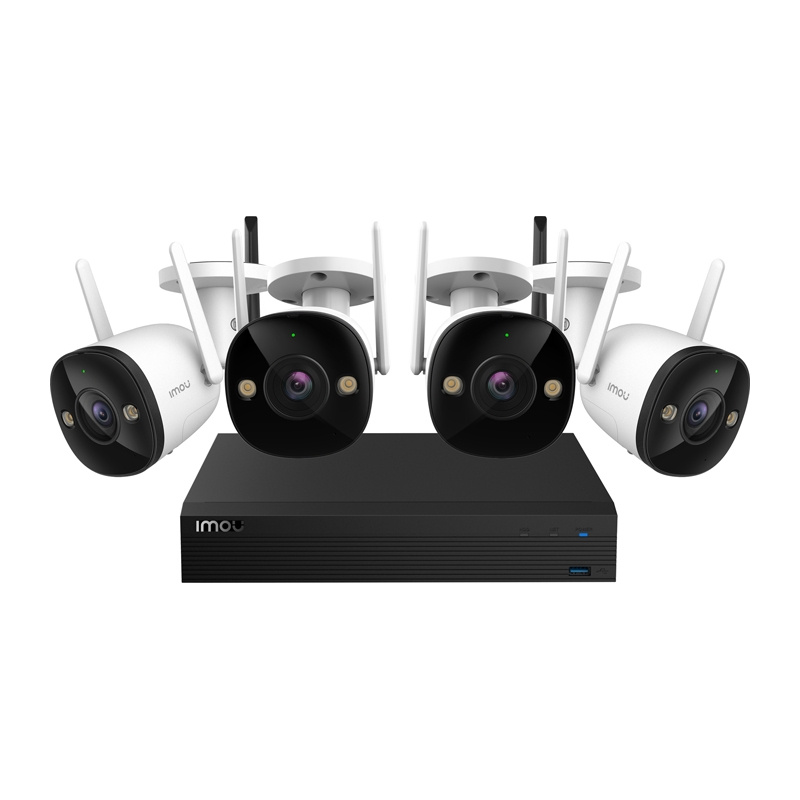

The IMOU CCTV Kit-Lite WiFi is a comprehensive home security solution that includes 4 IMOU Bullet 2 cameras and a 4-channel Wi-Fi NVR with a built-in 1TB HDD. The system offers 1080p Full HD monitoring, providing clear images around the clock. Thanks to Smart H.265 compression, recording storage time is significantly extended—you can store up to approximately 24 days of footage on a 256 GB card, whereas with the older H.264 standard, this would be about 12 days. Automatic device pairing within 120 seconds simplifies installation and eliminates the need for complicated configuration.

Clear image and wide field of view

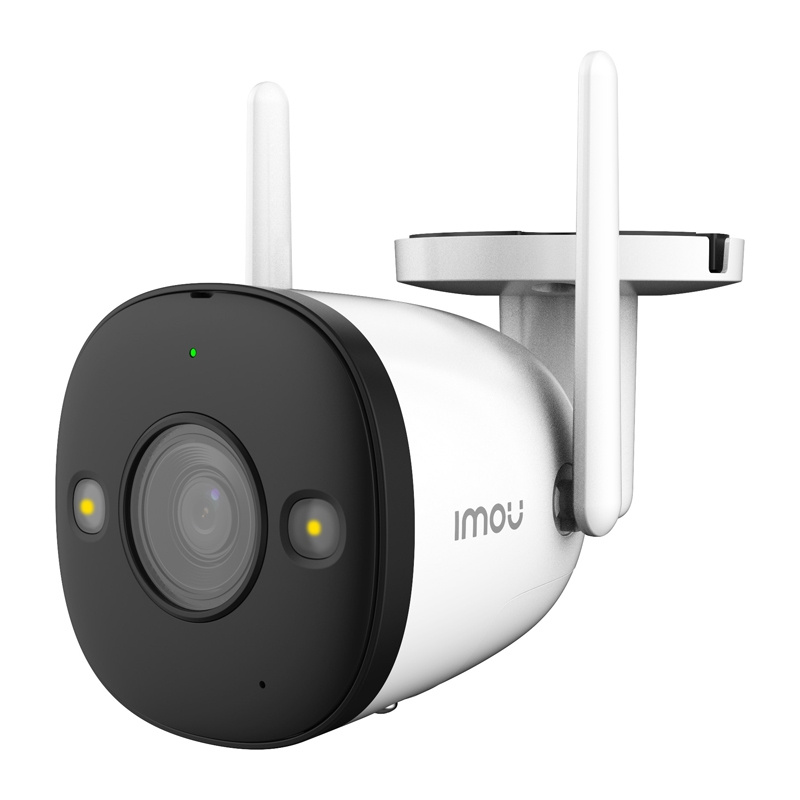

The Bullet 2 cameras are equipped with a 1/2.8" 2MP Progressive CMOS sensor, which captures images at a resolution of 1920 × 1080 at a frame rate of up to 25/30 fps. Wide viewing angles (108° horizontally, 56° vertically, and 128° diagonally) allow for effective monitoring of a larger area. Night vision mode with a range of up to 30 meters ensures a clear image in the dark, and Smart Color Night Vision technology enables color recording upon motion detection thanks to the built-in spotlight.

Intelligent detection and instant notifications

The human detection feature precisely identifies human figures, reducing the number of false alarms triggered by animals or moving leaves, for example. The ability to set a detection zone allows you to focus monitoring on the most important areas. Upon detecting an event, you will immediately receive a notification on your smartphone, allowing you to react quickly.

Active protection and real-time communication

The system not only records events but also actively responds. The built-in spotlight and 110 dB alarm can automatically deter an intruder the moment motion is detected. Additionally, the cameras are equipped with a microphone and speaker, enabling two-way communication—you can conveniently talk to family members, a delivery person, or warn unwanted visitors directly from the app.

Stable connectivity and an open system

Wi-Fi connectivity in the IEEE802.11b/g/n standard (2.4 GHz) and dual 2×2 MIMO antennas ensure a stable signal with a range of up to 100 meters in open terrain. The system supports the ONVIF protocol, meaning it is not a closed solution—in the future, you can connect compatible devices from other manufacturers. This offers greater flexibility and the ability to expand your surveillance system without having to replace the entire setup.

Flexible data storage and remote access

You can store recordings in three ways: on the NVR’s built-in hard drive (1TB), on microSD cards in the cameras (up to 256 GB), or in the cloud. The cloud service allows for live viewing, playback of recordings, and event logging; however, it includes a 30-day trial period—after which a subscription is required. The system is complemented by the ability to access it remotely via a mobile app.

High-performance NVR and full control over recordings

The included NVR supports 4 channels and decodes 1080P video at 25 fps. It offers recording bandwidth of up to 40 Mbps (LAN) and 16 Mbps via Wi-Fi. It is equipped with HDMI and VGA outputs (up to 1080P), an Ethernet port, a SATA port (supporting drives up to 8TB), and USB 2.0 ports. Various recording modes are available—24/7 continuous, motion detection, alarm, schedule, or manual—as well as the ability to create backups via USB or the network.

Weatherproof design for outdoor use

The cameras meet the IP67 standard, meaning they are fully resistant to rain, snow, and dust, making them suitable for all weather conditions. An adjustable mount allows for precise adjustment of the viewing angle. Low power consumption (less than 5.32 W for cameras and up to 10 W for the disk-less NVR) allows for continuous system operation without excessive energy consumption.

Included:

• 4 Cameras
• Wi-Fi NVR (with built-in 1 TB HDD)
• Quick Start Guide
